OMAR172268: 7610, 7710, and 7810 Tractors( 30 001- ), Block File: AG_RF30435_2562_19_21DEC99.htm

Replacing Loader Lights-Optional

Remove screws from back of housing.

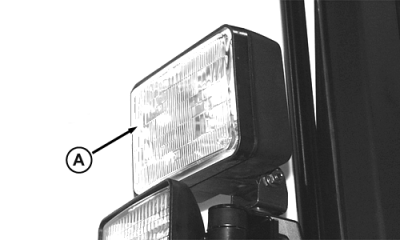

Disconnect lamp (A) from connector and install new lamp.

RW26500

AG,RF30435,2562 -19-21DEC99-1/1
