Replacing Rear Warning Lights

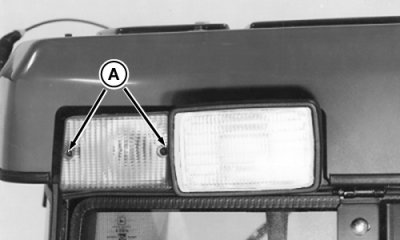

Remove screws (A) securing lamp to housing.

Unfasten lamp retainer and pull bulb from housing.

Disconnect bulb from wiring harness and connect new bulb.

RW55749A

AG,RF30435,2564 -19-21DEC99-1/1
