Using Accessory Electrical Outlet

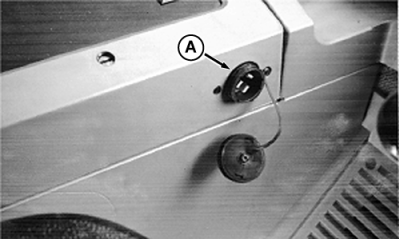

The 12-volt outlet (A) is used when connecting auxiliary equipment. An additional electrical outlet may be installed on the front-lower portion of the console. This option is available from your John Deere Dealer.

NOTE: Outlet is protected by a 30-amp fuse. The key switch must be in the ON or ACCESSORY position when using the outlet.

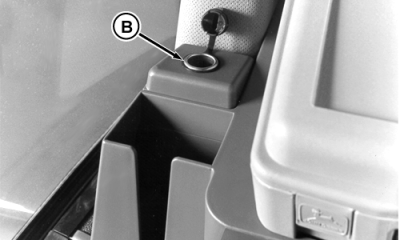

An additional electrical outlet (B) is provided with field office and is located in the left rear corner of the cab.

AG,RF30435,2605 -19-14JAN00-1/1
