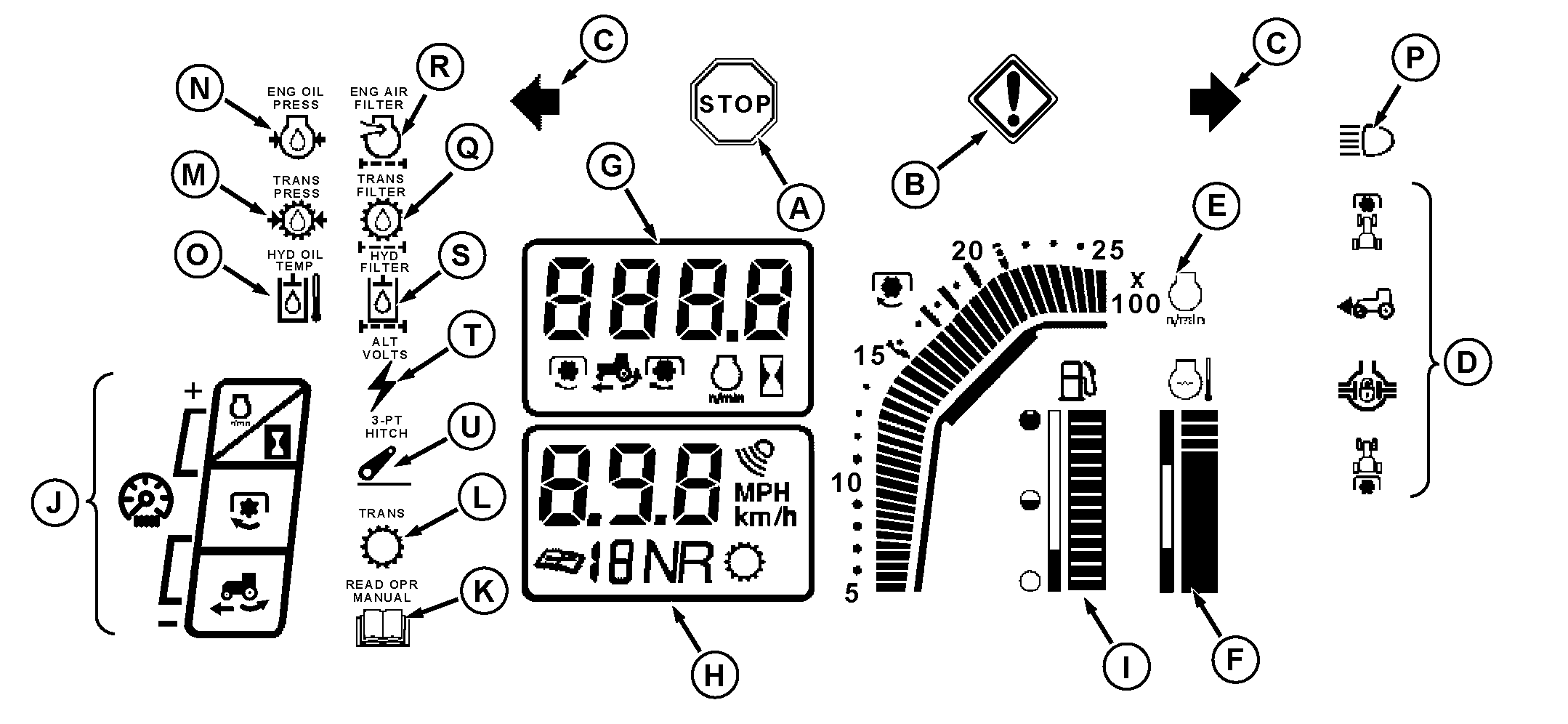

| KEY |
ITEM |
FUNCTION |
| |
| A |
STOP |
Serious Malfunction-STOP ENGINE IMMEDIATELY |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe guages and indicator lamps |
| C |
Turn Signal |
Flashes left or right turn lights-Both flash when activating HAZARD switch |
| D |
Function |
Indicates the activated function- MFWD, Differential Lock, PTO, and HMS-Indicator flashes if a problem exists |
| E |
Tachometer |
Indicates engine speed |
| F |
Engine Temperature |
Indicates temperature of engine |
| G |
Upper Digital Display |
Displays tractor hourmeter, PTO speed, engine speed, current system voltage, and wheel slip |
| H |
Lower Digital Display |
Displays tractor ground speed (mph)-Displays gear selected and direction for tractors with AutoQuad II or Powershift transmission |
| I |
Fuel |
Indicates remaining amount of fuel |
| J |
Function Selectors |
Changes digital display functions |
| K |
Read Operator Manual |
Flashes to indicate a problem not included by other indicators |
| L |
Transmission System * |
PowrQuad-no function
Powershift-indicates problem with transmission control system-indicates tractor is in "enable" mode |
| M |
Transmission Oil Pressure ** |
Low transmission oil pressure |
| N |
Engine Oil Pressure ** |
Low engine oil pressure |
| O |
Hydraulic Oil Temperature *** |
hot hydraulic oil |
| P |
High Beam Head Lights |
High beam head lights are activated |
| Q |
Transmission Filter Restriction * |
Restricted transmission filter |
| R |
Engine Air Filter Restriction * |
Restricted engine air filter |
| S |
Hydraulic Filter Restriction * |
Restricted hydraulic filter |
| T |
Voltage |
Electrical system voltage is too low or too high |
| U |
Hitch System |
Flashes when Powershift transmission is in "enable" mode |
