Changing Display Functions

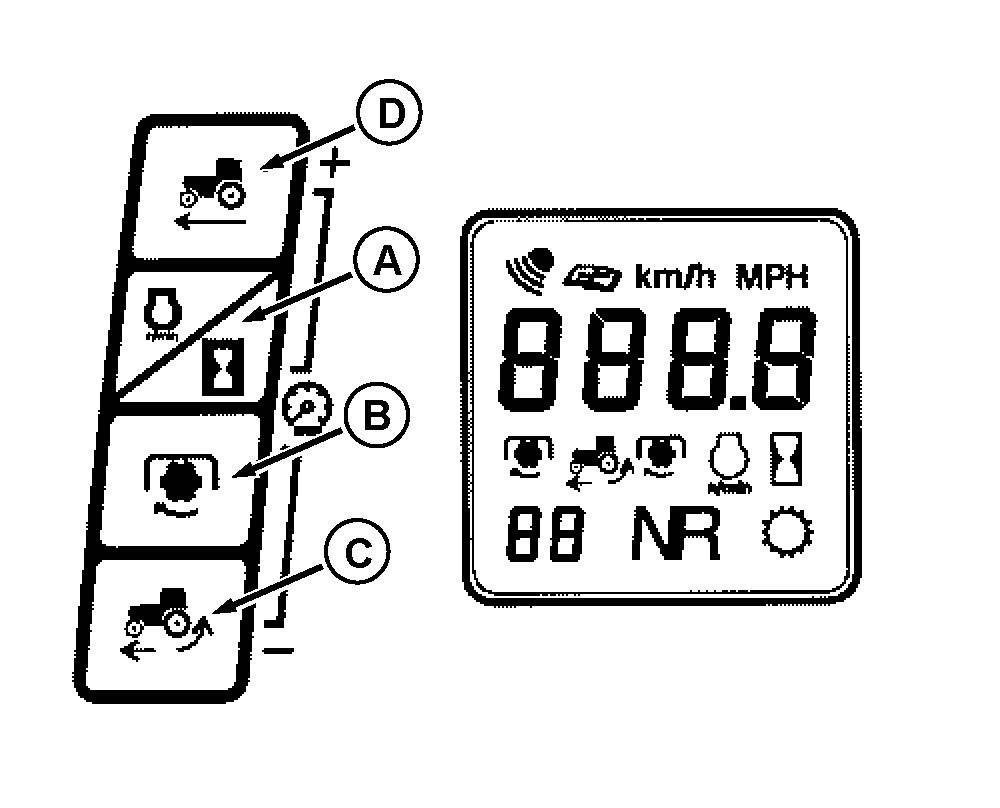

RW55989A

ANALOG INSTRUMENT PANEL

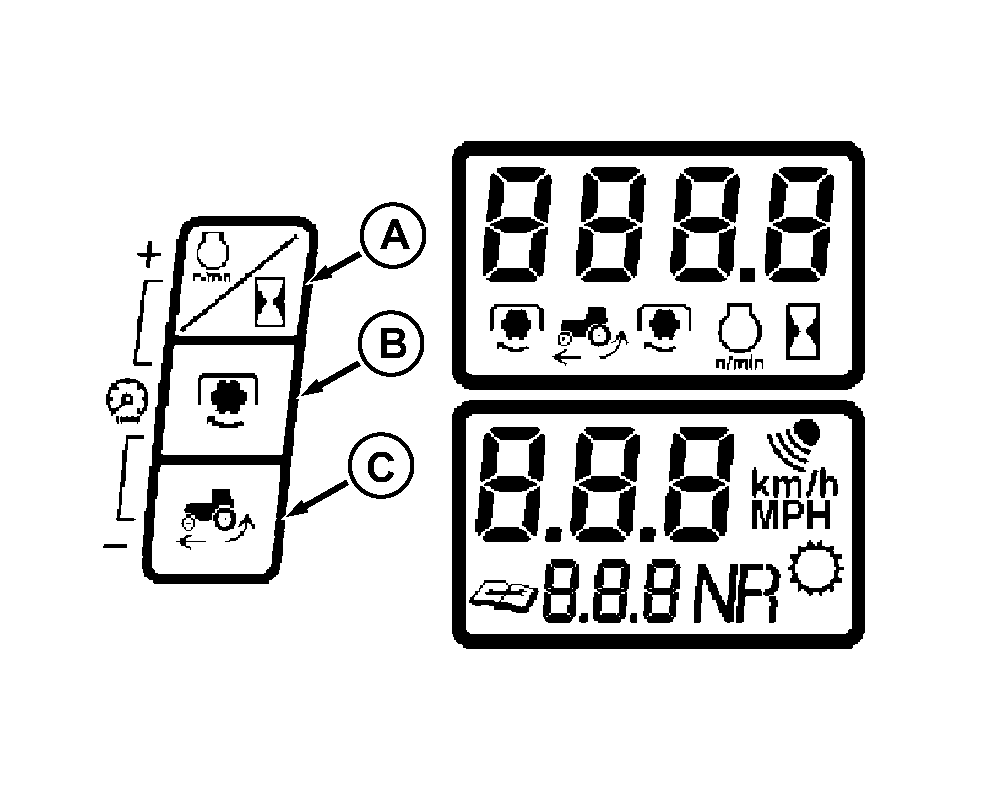

RW26795

DIGITAL INSTRUMENT PANEL

Change display functions using the touch switches on the left side of the instrument panel.

Engine Speed and Hourmeter

Pressing switch (A) shows engine rpm. Press this switch for 1-1/2 seconds to display engine hours on upper display and tenths of a hour on the lower display.

PTO Speed

Pressing switch (B) displays the PTO rpm.

Ground Speed and Wheel Slip
(Tractors WITH RADAR)

NOTE: Dashes are displayed if radar is not sensed.

Pressing wheel-slip switch (C) displays percent of wheel slip.

Pressing ground-speed switch (D) on the ANALOG instrument panel displays true ground speed. Pressing switch a second time will change to a speed calculated from transmission rpm.

For DIGITAL instrument panel, the lower display shows true ground speed. Pressing switch (C) a second time will change lower display to a calculated speed from transmission rpm, while wheel slip remains on upper display. To switch back to true ground speed on the lower display press any other touch switch.

NOTE: The calculated ground speed does not allow for wheel slip or variation in tire size.

Voltage

Holding switches (A) and (C) simultaneously will display current system voltage.

Panel Light Intensity

Instrument panel light intensity can be adjusted with head lights ON.

Pressing switches (A) and (D) simultaneously on ANALOG panel or (A) and (B) simultaneously on the DIGITAL panel will INCREASE the light intensity. Pressing switches (B) and (C) simultaneously will DECREASE the intensity.

AG,RF30435,2607 -19-14JAN00-1/2

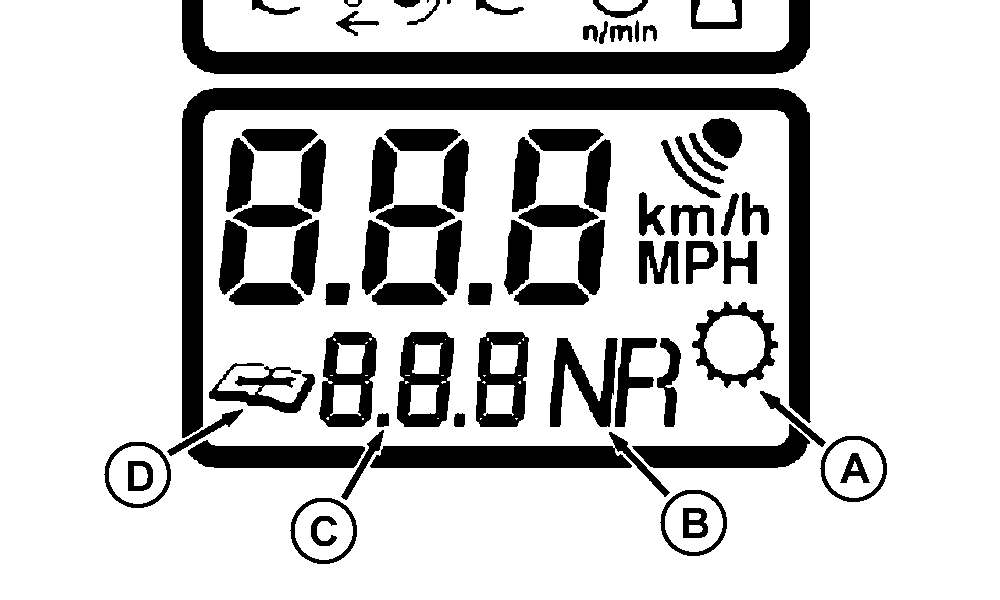

NOTE: For AutoQuad II and powershift transmissions indicator (A) is constantly illuminated with the key switch in the ON position.

The display will show direction (B) and the gear selected (C) for tractors with powershift transmissions. Tractors equipped with AutoQuad II transmission indicate mode and selected gear at (C).

The diagnostic fuse indicator (D) is illuminated when a diagnostic fuse is inserted into the fuse panel. This is used by your John Deere Dealer for diagnostic and calibration purposes.


A-Transmission Indicator1
B-Forward-Neutral-Reverse Indicator1
C-Gear Indicator1 and Mode Indicator for AutoQuad II Transmission
D-Diagnostic Fuse Indicator

RW26796

DIGITAL INSTRUMENT PANEL

1 For AutoQuad II and Powershift Transmissions

AG,RF30435,2607 -19-14JAN00-2/2
