Operating Rotary Beacon Light-Optional

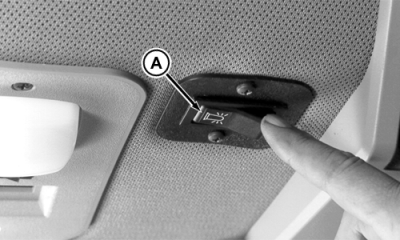

Push switch (A) to activate the rotary beacon light assembly (B).

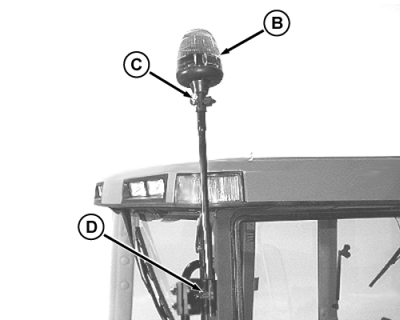

When beacon light is not used:

• Loosen nut (C) and remove light assembly (B)
• Install rubber protective cap on connector
• Loosen bracket nut (D), invert beacon support, and tighten nut

AG,RF30435,2611 -19-20JAN00-1/1
