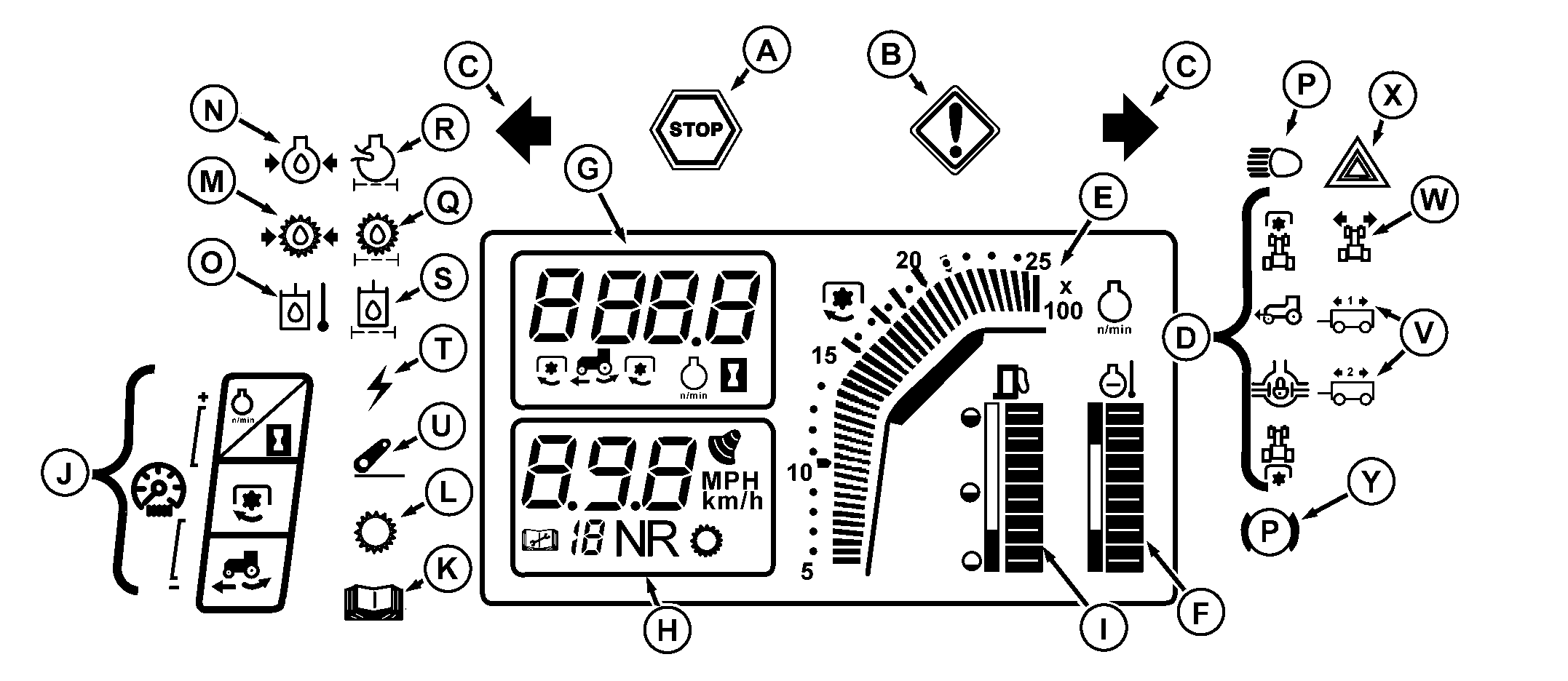

| KEY |
ITEM |
FUNCTION |
| |
| A |
STOP |
Serious Malfunction-STOP ENGINE IMMEDIATELY |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe gauges and indicator lamps |
| C |
Turn Signal |
Flashes left or right turn lights-Both flash when activating HAZARD switch-Both flash when remote PTO selected |
| D |
Function |
Indicates the activated function-Front PTO, MFWD, Differential Lock, Rear PTO, and HMS-Indicator flashes if a problem exists |
| E |
Tachometer |
Indicates engine speed |
| F |
Engine Temperature |
Indicates the engine temperature |
| G |
Upper Digital Display |
Displays tractor hourmeter, front and rear PTO speed, engine speed, current system voltage, and wheel slip |
| H |
Lower Digital Display |
Displays tractor ground speed (km/h)-Displays gear selected and direction for tractors with powershift transmission |
| I |
Fuel |
Indicates remaining amount of fuel |
| J |
Function Selectors |
Changes digital display functions |
| K |
Read Operator Manual |
F1 fuse is blown |
| L |
Transmission System * |
Powershift-Indicates a problem with the transmission control system or the tractor is in the "ENABLE" mode |
| M |
Transmission Oil Pressure ** |
Low transmission oil pressure |
| N |
Engine Oil Pressure ** |
Low engine oil pressure |
| O |
Hydraulic Oil Temperature *** |
Hot hydraulic oil-Check oil level or check for restricted oil cooler |
| P |
High Beam Head Lights |
Indicates high beam head lights are activated |
| Q |
Transmission Filter Restriction * |
Restricted transmission filter |
| R |
Air Filter Restriction |
Restricted air filter |
| S |
Hydraulic Filter Restriction * |
Restricted hydraulic filter |
| T |
Voltage * |
Electrical system voltage is too low or too high |
| U |
Hitch System |
Flashes when powershift transmission is in "ENABLE" mode |
| V |
Trailer Status Lights |
Flashes when turn signals or hazard warning lights are activated |
| W |
Turn Signal |
Indicates turn signals or hazard warning lights are activated |
| X |
Hazard Warning Lights |
Flashes when the hazard warning lights are activated-Flashes when PTO remote select switch is on |
| Y |
Secondary Brake |
Secondary brake is engaged |
| |
| * SERVICE ALERT Indicator Flashes |
| ** STOP ENGINE Indicator Flashes |
| ** STOP ENGINE and SERVICE ALERT Indicators Flash |
