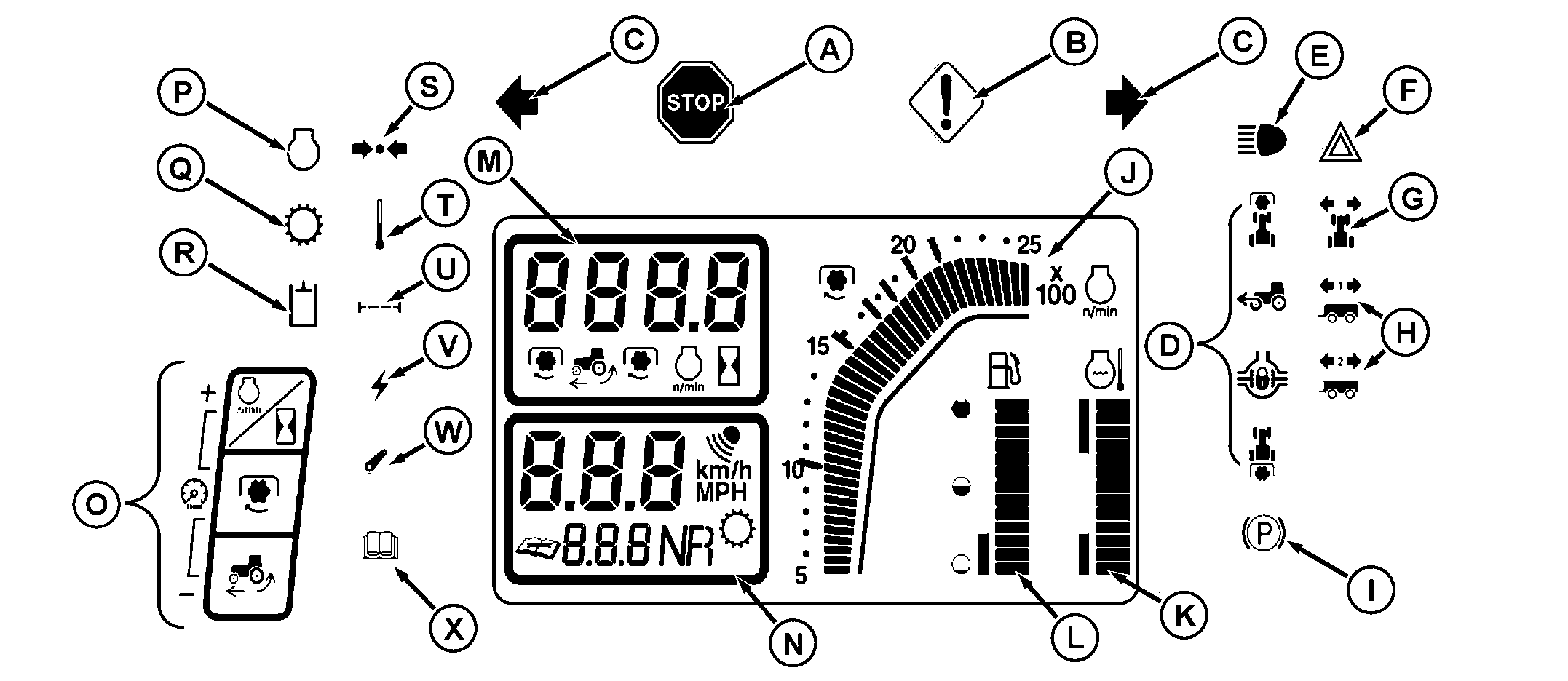

| KEY |
ITEM |
FUNCTION |
| |
| A |
STOP |
Serious Malfunction-STOP ENGINE IMMEDIATELY |
| B |
SERVICE ALERT |
Flashes when a problem develops-Observe gauges and indicator lamps |
| C |
Turn Signal |
Flashes left or right turn lights-Both flash when activating HAZARD switch |
| D |
Function |
Indicates the activated function-Front PTO, MFWD, Differential Lock, Rear PTO, and HMS-Indicator flashes if a problem exists |
| E |
High Beam Head Lights |
Indicates high beam head lights are activated |
| F |
Hazard Warning Lights |
Flashes when the hazard warning lights are activated, flashes when PTO remote select switch is on |
| G |
Turn Signal |
Indicates turn signals or hazard warning lights are activated |
| H |
Trailer Status Lights |
Flashes when turn signals or hazard warning lights are activated |
| I |
Secondary Brake |
Indicates secondary brake is engaged |
| J |
Tachometer |
Indicates engine speed |
| K |
Engine Temperature |
Indicates temperature of engine |
| L |
Fuel |
Indicates remaining amount of fuel |
| M |
Upper Digital Display |
Displays tractor hourmeter, front and rear PTO speed, engine speed, current system voltage, and wheel slip |
| N |
Lower Digital Display |
Displays tractor ground speed (km/h)-Displays gear selected and direction for tractors with AutoQuad II or powershift transmission |
| O |
Function Selectors |
Changes digital display functions-(See changing display function) |
| P |
Engine System |
Flashes with "PRESSURE" symbol (low oil pressure) or "FILTER" symbol (hydraulic filter restriction) |
| Q |
Transmission System * |
Flashes with "PRESSURE" symbol (low transmission oil pressure) or "FILTER" symbol (transmission filter restriction)-Flashes to indicate problem with powershift transmission control system |
| R |
Hydraulic System |
Flashes with "TEMPERATURE" symbol (hot hydraulic oil) or "FILTER" symbol (hydraulic filter restriction) |
| S |
Pressure ** |
Flashes with "ENGINE" symbol or "TRANSMISSION" symbol to indicate low oil pressure |
| T |
Temperature *** |
Flashes with "HYDRAULIC" symbol to indicate hot hydraulic oil |
| U |
Filter * |
Flashes with "ENGINE" symbol or "TRANSMISSION" symbol |
| V |
Voltage * |
Electrical system voltage is too low or too high |
| W |
Hitch |
Flashes when the tractor is in the "enable" mode (powershift transmission) |
| X |
Read Operators Manual |
Flashes to indicate a problem not included by other indicators |
| |
| * SERVICE ALERT Indicator Flashes |
| ** STOP ENGINE Indicator Flashes |
| *** STOP ENGINE and SERVICE ALERT Indicators Flash |
