Operating Road Lights

causym CAUTION: Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim head lights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.

The ROAD LIGHT switch (A) has four positions and operates regardless of the key switch position:

OFF POSITION

Shuts off all lights

PARK POSITION

  • Position Lights (C)
  • Red Tail Lights (E)

ROAD POSITION

  • Position Lights (C)
  • High or Low Beam head Lights (D)
  • Amber Tail Lamps

FIELD POSITION

Activates field lights. Use switch (B) to select field light combinations. (See Operating Field Lights).


A-Road Light Switch
B-Field Light Switch

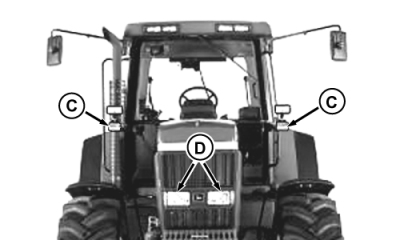

C-Position Lights
D-Head Lights

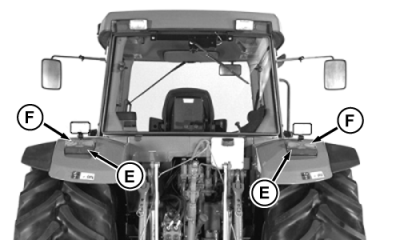

E-Red Tail Lights
F-Amber Tail Lights

RW55877A
RW55878A
RW55879A

AG,RX15494,3367 -19-18JAN00-1/1
