Operating Field Lights

causym CAUTION: Avoid injury caused by accidental collision with another vehicle. Avoid using Field lights while driving on roads which could blind or confuse other drivers.

The FIELD LIGHT switch (B) has four positions and operates when the ROAD LIGHT switch (A) is in the FIELD POSITION.

POSITION 1

  • Head Lights
  • Tail Lights

POSITION 2 1

  • Head Lights
  • Tail Lights
  • Front Wrap-Around Lights
  • Front Roof Floods
  • Rear Fender Floods
  • Belt-Line Floods

POSITION 3

  • Head Lights
  • Tail Lights
  • Front Wrap-Around Lights
  • Front Roof Floods
  • Belt-Line Floods

POSITION 4

  • Head Lights
  • Tail Lights
  • Rear Roof Floods
  • Rear Fender Floods

NOTE: The high or low-beam dimmer switch affects only the head lights when the light switch is in field position.

RW55877A
RW55880A
RW55881A

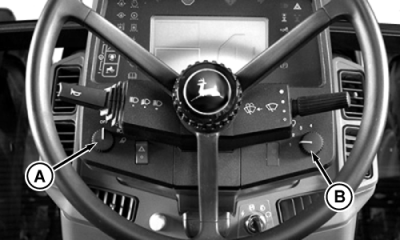

A-Road Light Switch
B-Field Light Switch

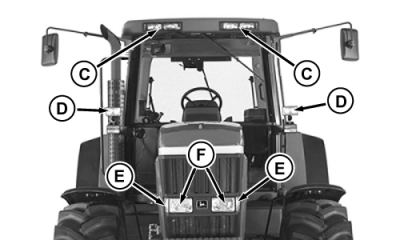

C-Front Roof Flood Lights
D-Belt-Line Flood Lights
E-Front Wrap-Around Lights
F-Head Lights

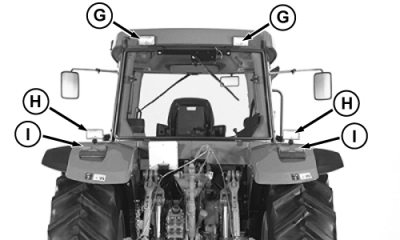

G-Rear Roof Flood Lights
H-Rear Fender Flood Lights
I-Tail Lights

1 All Field Lights ON
