Operating Turn Signals, Horn, and Head Lights

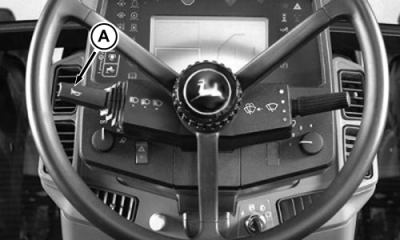

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Push lever up for a right turn, or pull down for a left turn and return lever immediately to center position.

Left or right turn signal continues to flash, while tractor travels 50 m (164 ft), then switches off automatically.

To cancel function before signal switches itself off automatically, push lever once again in the desired direction of turn, and return lever to center position.

Push inward on end of lever to activate horn.

Push lever forward to activate high beam head lights.

Pull lever into center position to operate low beam.

Pull lever toward you and release to flash high beam.

Dim head lights for oncoming vehicles. Adjust head lights correctly. (See Maintenance-Electrical System)
