Adjusting Air Suspension Seat

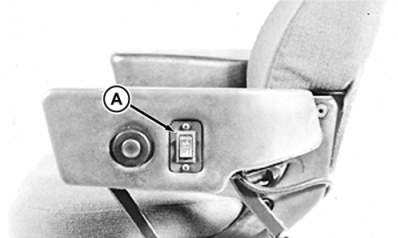

Turn key switch on. Press switch (A) to raise or lower the seat. Each operator of different weight and height should:

Lower seat (release pressure from air suspension).

Raise the seat to adjust for individual weight and height.

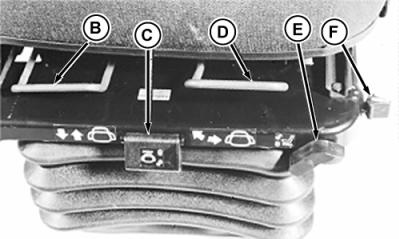

Pull up on handle (B) to allow the seat to slide forward or backward.

Lever (E) controls forward and backward movement. Push down on lever to lock seat in forward or rearward position.

Lift up on handle (D) to swivel in either direction and lock into the closest detent. Pulling up firmly on handle to release position allows seat to swivel freely.

Pulling up on handle (C) allows the seat sideways movement. Push handle down to lock lateral movement.

Lever (F) can be set to three positions for desired comfort. Move lever rearward (+) to firm the ride, and forward (-) to soften the ride.

Backrest angle is changed by raising or lowering the control lever located at the rear of the right armrest.

Lumbar support is changed by a control lever on the right side in the seat back.

A-Height Adjustment
B-Fore-Aft Adjustment
C-Lateral Attenuator Lock
D-Seat Swivel
E-Fore-Aft Attenuator Lock
F-Damping Lever

AG,RX15494,3373 -19-19JAN00-1/1
