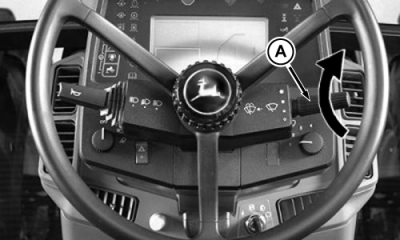

Operating Windshield Wiper/WasherRotate switch (A) to activate four wiper positions:
Push end of switch toward the steering column to operate optional windshield washer. Fill washer reservoir (B) at left-rear of tractor cab. Use non-freezing solvent to prevent damage to washer system in cold temperatures. Push switch (C) to operate optional rear washer and wiper. |
|
AG,RX15494,3380 -19-19JAN00-1/1 |
