Auxiliary Heaters-Optional

causym CAUTION: Avoid electrical shock or fire. Use a 3-wire, heavy duty, electrical cord, suitable for outdoor use. Always plug electrical cord into a ground fault protected, 220-volt outlet.

NOTE: Use auxiliary heaters for temperatures below -22°C (-7°F).

Auxiliary heaters are available from your John Deere Dealer:

  • Engine coolant
  • Transmission and Hydraulic charge pump

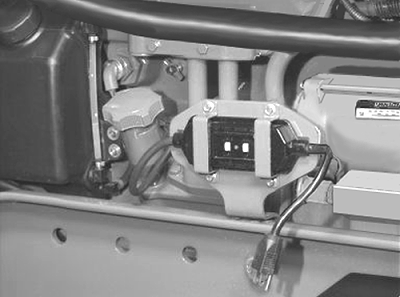

Connect the heaters and the ground fault interrupter to a ground fault protected 220-volt electrical outlet.

IMPORTANT: The ground fault interrupter on the tractor protects the tractor only and does not protect electrical wiring supplying power to the tractor. Test all ground fault interrupters before each use.

RW26821

AG,RX15494,3397 -19-19JAN00-1/1
