Shifting the PowrQuad Transmission

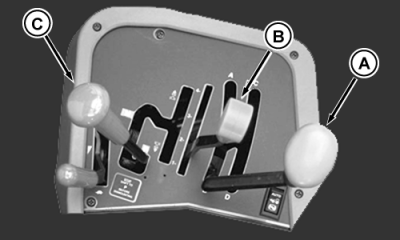

The PowrQuad ™ Transmission has four or five speed ranges which can be selected by the range-shift lever (A). There are four forward and reverse gears in each range. Use the clutch when shifting from one range to another.

Move speed lever (B) for four power-shiftable gears without using the clutch.

Move right-hand reverser lever (C) from PARK position to FORWARD position for forward operation. Pull the lever back for reverse operation. Gear shift lever can be shuttle shifted from forward to reverse without using the clutch.

Operate the clutch when working in a confined area or making an emergency stop.
