Using Hydraulic Trailer Brakes-Optional

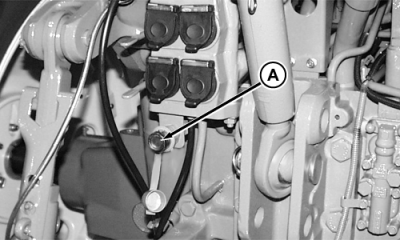

Remove cap from trailer brake coupler (A). Connect pressure hose to brake coupler, making sure hose end and coupler are clean.

Press down on brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

IMPORTANT: To prevent undue wear on the brakes, observe the following points:

Make sure the pressure hose is connected.

Select the same gear, when driving downhill, that would be selected for driving uphill.

Check the hydraulic trailer brake regularly for correct functioning.

AG,RX15494,3414 -19-19JAN00-1/1
