Using External Raise/Lower Switch

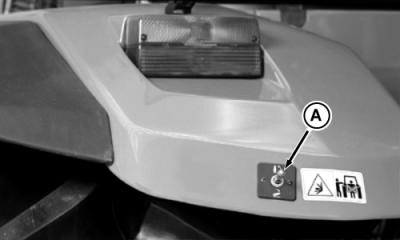

CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise/lower switch (A). Stay clear of interference points when using external raise/lower switch.

Pull external raise/lower switch (A) outward and hold switch up to raise hitch, or down to lower.

NOTE: Hitch system is disabled when external raise/lower switch is used.

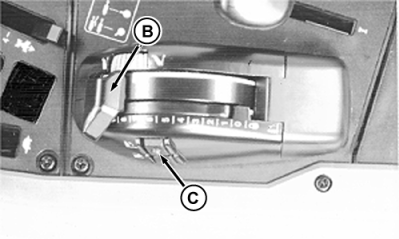

To RESET Hitch Control System , move hitch control lever (B) to actual position of the hitch, or use raise lower switch (C).

AG,RX15494,3424 -19-19JAN00-1/1
