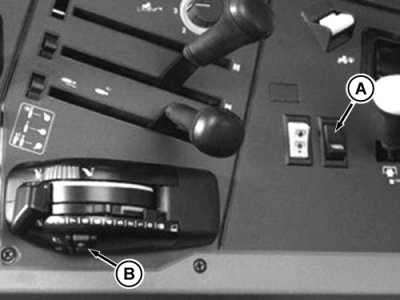

Select differential lock, MFWD, and/or rear PTO as necessary. Activate the system by pressing HMS switch (A). Indicator lights will flash slowly, with an audible warning.

At the end of the field, push hitch raise/lower switch. The differential lock will stop immediately, the rear PTO will stop after hitch has raised 10 percent of lift travel, and MFWD will stop when implement reaches maximum height. Indicator lights will flash quickly.

When implement is lowered, the selected function(s) will be activated immediately. Indicator lights will flash slowly. For safety reasons, the rear PTO must be switched on manually.

To switch off HMS, press HMS switch again. Indicator lights will glow continuously, with an audible warning.

NOTE: MFWD can be set for continuous operation at any time, regardless of the HMS mode. Move MFWD switch from AUTO position to ON position.
