Stabilizing System-Optional

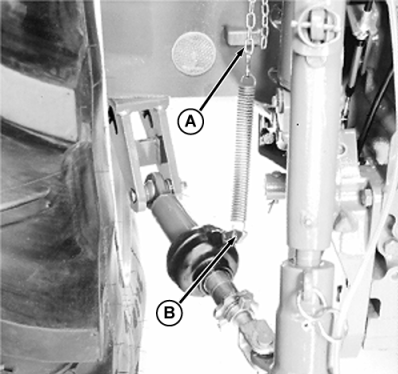

The stabilizing system is operated by means of chain/spring (A) and lever (B). If lever (B) is raised, the draft links have lateral sway, otherwise they are locked.

Chain (A) Short -

Draft links are locked in raised position (rigid setting), in lowered position they have lateral sway.

Chain (A) Long -

Draft links are locked in all positions.

AG,RX15494,3432 -19-19JAN00-1/1
