Positioning Center Link

IMPORTANT: Do not exceed maximum implement weight specified in the Performance Ballasting Section.

Excessive power can damage an implement, and too large an implement can damage the tractor.

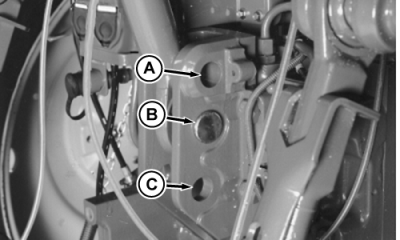

The lowest position (C) provides the greatest lifting height (additional 10 degree upward angle). The highest position (A) provides the least lifting force.

Use center hole (B) for implements requiring higher lift capacity but not requiring the 10 degree upward angle.

A-Top Hole; 685 mm (27 in.) Mast
B-Center Hole; 685 mm (27 in.) Mast
C-Bottom Hole; 610 mm (24 in.) Mast
