Adjusting Center Link

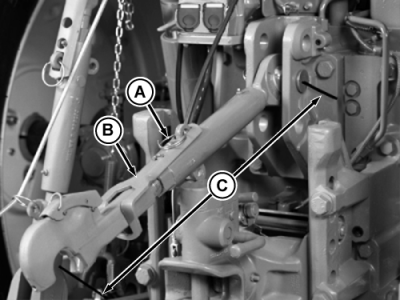

1. Adjust center link to level implement front-to-rear. Remove lock pin (A) and lift adjusting handle wrench (B). Rotate center link to desired position.

NOTE: Adjustable range (C) is 608-808 mm (24-32  in.)

2. Secure adjusting handle wrench with lock pin (A).
