Adjusting Lift Links

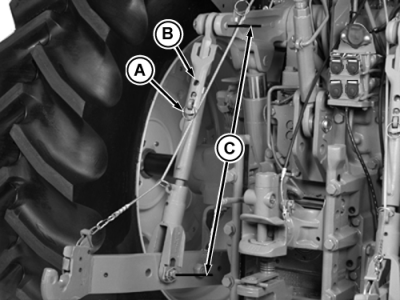

1. Remove lock pin (A) and lift up adjusting handle wrench (B).

2. Rotate lift link to desired position to level the implement side-to-side.

NOTE: Adjustable range (C) is 842-989 mm (33-39  in.)

3. Secure adjusting handle wrench with lock pin (A).
