Attaching Implement to Hitch

CAUTION: To avoid bodily injury or machine damage, put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation.

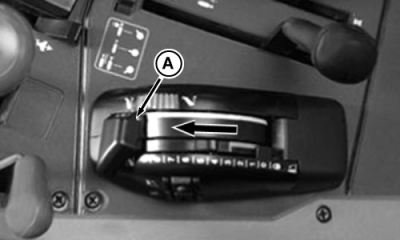

1. Turn load/depth control (A) fully counter clockwise before attaching implements.

CAUTION: Avoid bodily injury. DO NOT use raise/lower switch when attaching or detaching implements. Use only hitch control lever (A) or EXTERNAL raise/lower switches.

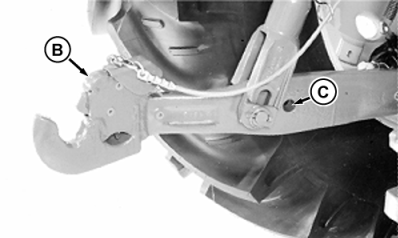

2. Lower hitch using hitch control lever (A). Reverse tractor until the coupler hooks (B) are below the implement hitch pins.

NOTE: On heavier implements, the lift links can be attached to the rear holes (C) in the draft links. This reduces the lifting height, but maximizes the lifting force.

3. Slowly raise hitch until pins are engaged in coupler hooks and correctly locked into position.

4. Attach center link to the top attaching point of the implement mast.

AG,RX15494,3438 -19-19JAN00-1/1
