Detaching Implement From Hitch

1. Lower implement to the ground.

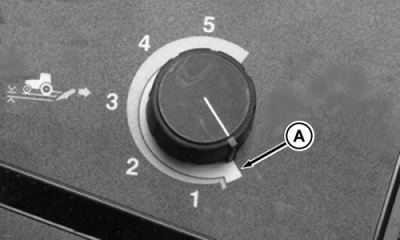

2. Turn load/depth control (A) fully counter clockwise before detaching implements.

3. Disconnect center link from implement. Lock center link into the transport position.

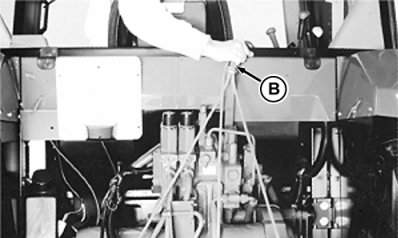

4. Pull release cable (B) and lower the hitch until coupler hooks are clear of implement hitch pins.

5. Drive tractor forward away from implement.

AG,RX15494,3439 -19-19JAN00-1/1
