Operating the Wagon Hitch-Optional

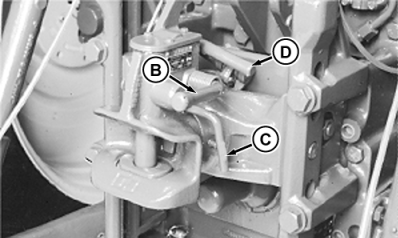

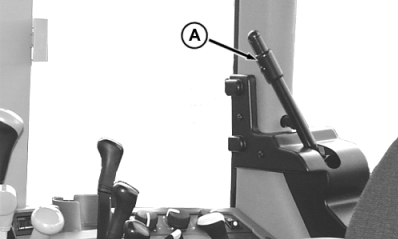

The wagon hitch can be released from the operator's seat using lever (A) or by using hitch lever (B).

CAUTION: Avoid personal injury. Keep hands and fingers from hitch latching mechanism.

The hitch device closes automatically when wagon towing eye enters the hitch or can be manually closed using lever (C).

Hitch height can be adjusted using lever (D).

AG,RX15494,3440 -19-19JAN00-1/1
