Operating the Pickup Hitch-Optional

The pickup hitch is operated using the hitch control lever and one selective control valve.

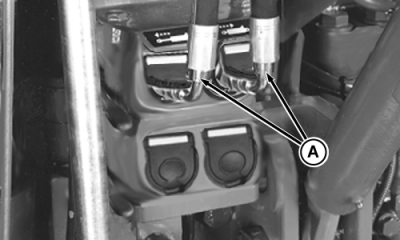

1. Install pickup hitch connecting lines (A) to top selective control valve coupler.

2. Raise the draft links to maximum height.

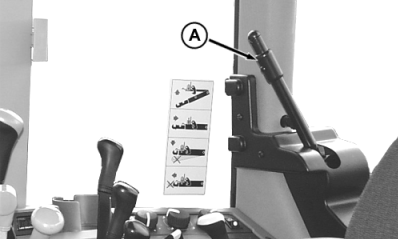

3. Pull release lever (A) to the right to release the hitch locking device.

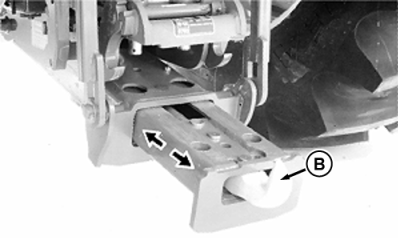

4. Lower the draft links and pickup hitch (B) to desired height using the hitch control lever.

5. Extend hitch hook fully using the SCV lever.

6. Back up tractor and raise draft links and pickup hitch so hitch hook engages in trailer towing eye.

7. Raise the draft links to transport/locked position and retract pickup hitch fully to its locked position.

8. Check both hitches for locked position . Pickup hitch should not lower with hitch control lever. Pickup hitch should not extend when SCV lever is operated.

CAUTION: Before driving away, make sure pickup hitch is fully raised and locked in both horizontal and vertical positions.

AG,RX15494,3441 -19-19JAN00-1/1
