Connecting Cylinder Hoses

CAUTION: Push Selective Control Valve (SCV) lever lockout to the right (transport lock) before attaching implements to prevent implement movement and possible personal injury.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

Be sure hose ends are clean prior to use to minimize hydraulic system contamination.

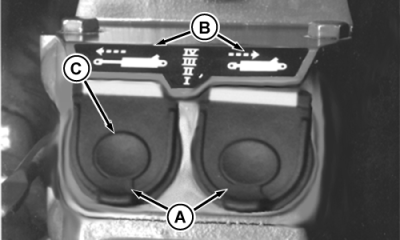

Clean off dust covers (A).

NOTE: Remote cylinder couplers are numbered I through IV. Couplers are identified from bottom to top.

Check to be sure symbols (B) on coupler identification plate, indicating cylinder movement, match cylinder travel direction.

When using SCV with single acting cylinders, plug hose into extend side of coupler (C). Push hose firmly into receptacle.
