Disconnecting Cylinder Hoses

CAUTION: Push SCV lever lockout to the right (transport lock) before detaching implements to prevent implement movement and possible personal injury.

Lower implement to ground before disconnecting cylinder hoses.

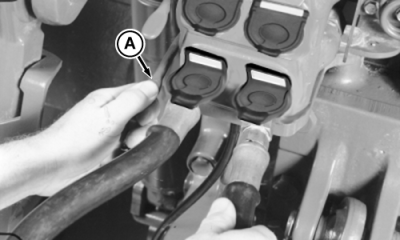

Push lever (A) down slightly to relieve any pressure build-up of trapped oil before removing hoses.

Pull hose straight out from receptacle.

AG,RX15494,3444 -19-19JAN00-1/1
