SCV Lever Detent Operation

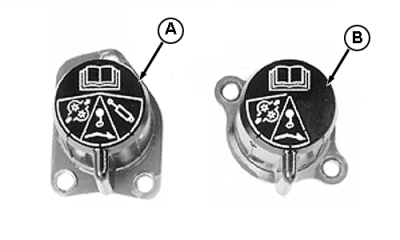

Three-Position SCV
-
(A)
Knob Position
Function of Lever Detent

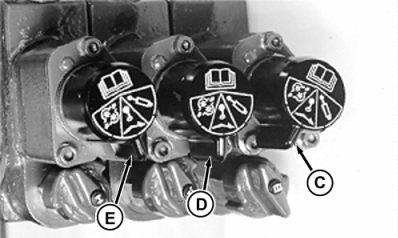

Turn Clockwise (C) to Detent Stop
Automatic Detent-lever returns automatically when cylinder reaches end of stroke
Center (D)
No Detent-lever returns to neutral when released
Turn Counter Clockwise (E) to Detent Stop
Continuous Detent-lever must be manually returned to neutral
Two-Position SCV
-
(B)
Knob Position
Function of Lever Detent
Turn Clockwise (F) to Detent Stop
No Detent-lever returns to neutral when released
Turn Counter Clockwise (G) to Detent Stop
Continuous Detent-lever must be manually returned to neutral
AG,RX15494,3447 -19-19JAN00-1/1
