CAUTION:
Push SCV lever lockout to the right (transport lock) before attaching or detaching implements to prevent implement movement and possible personal injury.

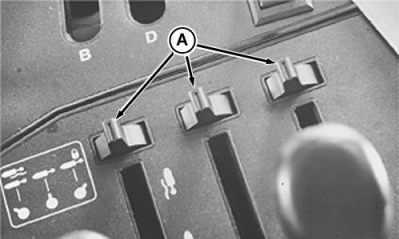

SCV lever lockouts (A) have three position settings:
Left-Full Lever Travel
Center-Float Lockout
Right-Transport Lock
Each SCV lever has four positions-
Neutral, Extend, Retract, and Float.
CAUTION:
Push SCV lever lockout to the right (transport lock) before attaching or detaching implements to prevent implement movement and possible personal injury.
