SCV Lever-Extend Position

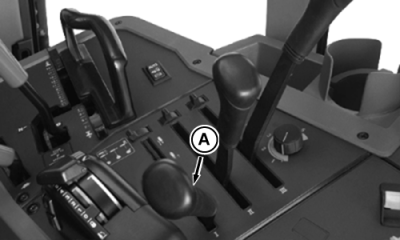

Pull lever slightly to rear (A) of neutral. This slowly extends cylinder. Lever returns to neutral when released.

Pull the lever all the way rearward to extend the remote cylinder at maximum rate. Detent operation mode depends on the SCV detent selected. (See SCV Lever Detent Operation in this section).
