Using Low-Pressure Return Circuit

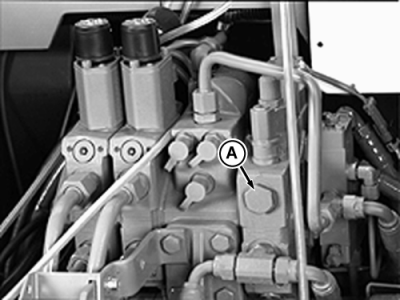

The electro-hydraulic hitch valve has a convenient port (A) to access the tractor hydraulic sump.

Examples of implements which cannot withstand high pressure applied to both ports are:

• Hydraulic motors which have the return and case drain ports connected. Failure of the motor housing or shaft seals may result if the return line is pressurized
• Remote hydraulic valves located on the implement may allow unexpected movement of cylinders if the return port is pressurized.

AG,RX15494,3455 -19-19JAN00-1/1
