Using Hydraulic Motor Return

Hydraulic motor return kit provides a convenient port to access the tractor low pressure return circuit.

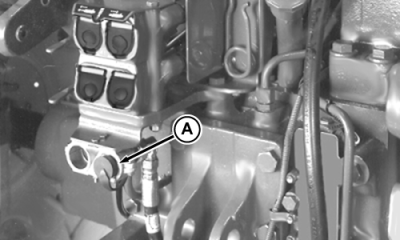

Remove cap from hydraulic motor return coupler (A). Connect return hose to coupler, making sure hose end and coupler are clean.

Using the motor return coupler will prevent:

  • Inadvertent reverse operation
  • Pressurization of auxiliary function return line
  • Potential flow checking of the return-side SCV coupling

NOTE: Motors without overrunning check valves should be connected to the motor return coupler to prevent return line pressurization when SCV is returned to neutral.

RW56559A
