Attaching PTO-Driven Implement

causym CAUTION: Entanglement in rotating driveline can cause serious injury or death. STOP THE ENGINE and allow the PTO driveline to stop before making adjustments, connections, or cleaning of PTO-driven equipment.

Keep PTO shield and driveline shields in place at all times. Make sure rotating shields turn freely.

Wear close fitting clothing. Stop the engine and be sure PTO driveline is stopped before making adjustments, connections, or cleaning PTO-driven equipment.

High-inertia implements do not completely stop the moment the PTO switch is moved to the disengaged position. Allow sufficient time for implement to stop after disengaging the PTO.

Lock drawbar in center position and remove clevis assembly.

Turn drawbar so offset is downward.

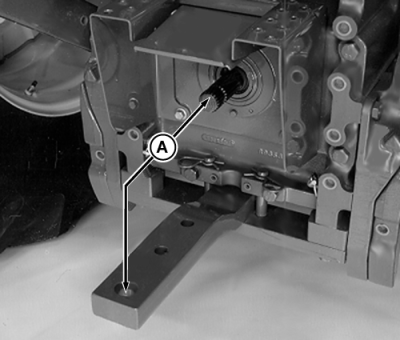

PTO Shaft PTO Shaft End to Hitch Pin Hole (A)

540 rpm - 6 splines 350 mm (14.0 in.)
1000 rpm - 21 splines 400 mm (16.0 in.)



Attach implement to drawbar before connecting PTO drive line. If implement will be connected to quick-coupler, be sure drawbar will not interfere.

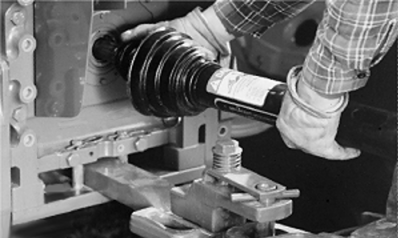

Connect drive line to PTO shaft. Turn shaft slightly by hand, to line up splines. If the PTO splines do not align, keep the engine shut off and move the shiftable PTO lever, if equipped, to a position marked with "N" and then turn PTO shaft manually to the correct position. Be sure yoke is in correct position and firmly locked.

Move PTO shield door to center position.

TS1644
RW55899A
RW55136A

AG,RX15494,3464 -19-19JAN00-1/1
