Using External PTO Switch-Optional

Rear PTO can be operated away from operator's position. 1 First, press preselector switch (A). Rear PTO indicator will light on front console. Second, push down and forward on PTO switch (B). The PTO will not start at this point; a continuous audible warning will sound and the hazard warning lights will flash.

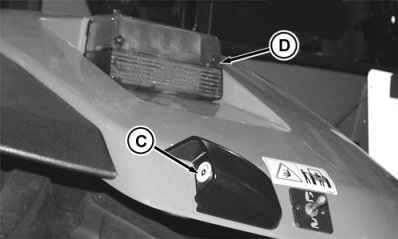

Third, press external PTO switch (C). Rear PTO will slowly start. Hazard warning lights will go out and turn signal light (D) will remain on.

  • Release external PTO switch within 4 seconds. PTO will slow to a stop. A continuous audible warning will sound and the hazard warning lights will flash.
  • Press external PTO switch for at least 4 seconds until turn signal light goes out, if PTO is to be operated for a lengthy period of time.

Shut off rear PTO by pressing external PTO switch. The continuous audible warning will sound intermittently and the hazard warning lights will flash -or- pull back rear PTO switch inside cab.

NOTE: If rear PTO is switched on in the cab, the rear PTO may be shut off at the external PTO switch, but cannot be switched on again without re-entering the cab.

RW26810
RW26462


A-Preselector Switch
B-Rear PTO Switch
C-External PTO Switch
D-Operational Light

1 Rear PTO can be engaged and disengaged regardless of whether tractor is equipped with HMS.

AG,RX15494,3466 -19-19JAN00-1/1
