Using Rear PTO Shield

CAUTION: Avoid personal injury. Put the PTO shield in correct position at all times. Do not use shield as a step.

Normal position of the PTO shield is in lowered position (A). Drawbar visibility is improved for attaching an implement.

PTO shield must be in the center position (B) for use with PTO-driven implements. Install cover over the shaft (C) when the PTO is not in use.

Lift shield to raised position (D), to provide clearance while connecting implement drive line to the PTO shaft.

Put PTO shield in center position before engaging PTO.

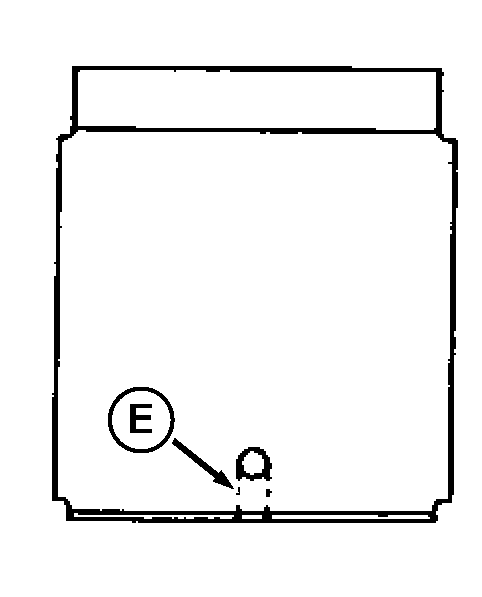

To connect an implement with an old-style tunnel shield, slot (E) must be cut in the PTO shield. Cut from the edge of the shield to the small hole.
