Using Front PTO Shield

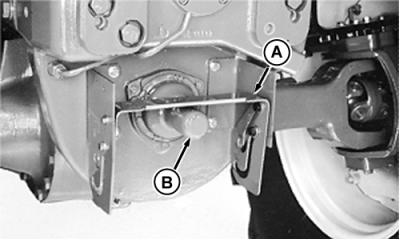

Normal position for the PTO shield is in the lowered position (A).

Install cover (B) over the shaft when the PTO is not in use.

NOTE: Use the lowered position when installing QUIK-TATCH ™ weights.

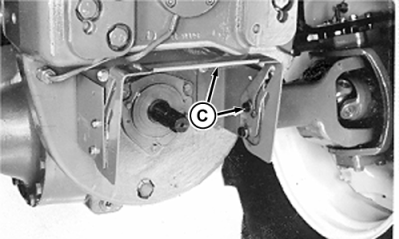

Lift shield to raised position (C) when connecting implement drive line to the PTO shaft.

RW21921A
RW21922A

QUIK-TATCH is a trademark of Deere & Company.

AG,RX15494,3469 -19-19JAN00-1/1
