Using Rear Wheel Weights

causym CAUTION: Avoid the possibility of personal injury. Use appropriate lifting equipment when installing weights.

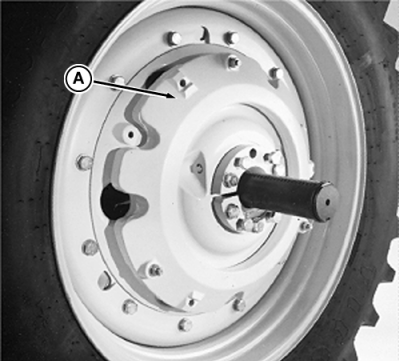

Cast iron weights (A) are available of 75 kg (165 lb) or 210 kg (465 lb) can be installed on inside or outside of wheel. See your John Deere Dealer for weight use and placement.

NOTE: When using 762 mm (30 in.) tread setting, only one 210 kg (465 lb) weight can be installed on inside of wheel.

Install weights on wheel.

For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes.

Tighten bolts. (See Torque Charts in the Specifications Section). Retighten after driving approximately 100 m (100 yds), after 3 hours, and again after 10 hours.

IMPORTANT: Inside wheel weights must have at least 25 mm (1 in.) clearance between weight and tractor components.
