Installing QUIK-TATCH™ Weights

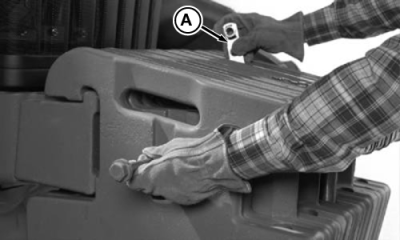

Quik-Tatch weights (A) weighing 50 kg (110 lb) each can be installed.

When required, install weights, balanced on each side of center pin (B). The first two weights must be installed as a pair.

To hold six weights or fewer in position, run retaining bolts (C) through holes from side-to-side. Tighten to 230 N·m (170 lb-ft).

When eight more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten bolts to 230 N·m (170 lb-ft). A total of 18 weights can be installed.
