Adjusting Fenders

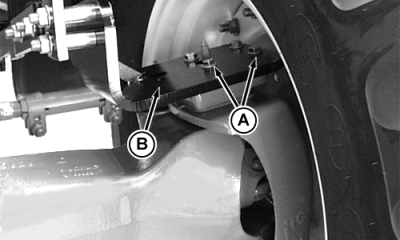

Position fender mounting bracket cap screws in outer holes (A) for tread settings with rim dished IN . Use inner holes (B) with rim dished OUT .

RW26472

AG,RX15494,3498 -19-19JAN00-1/2

RW26454

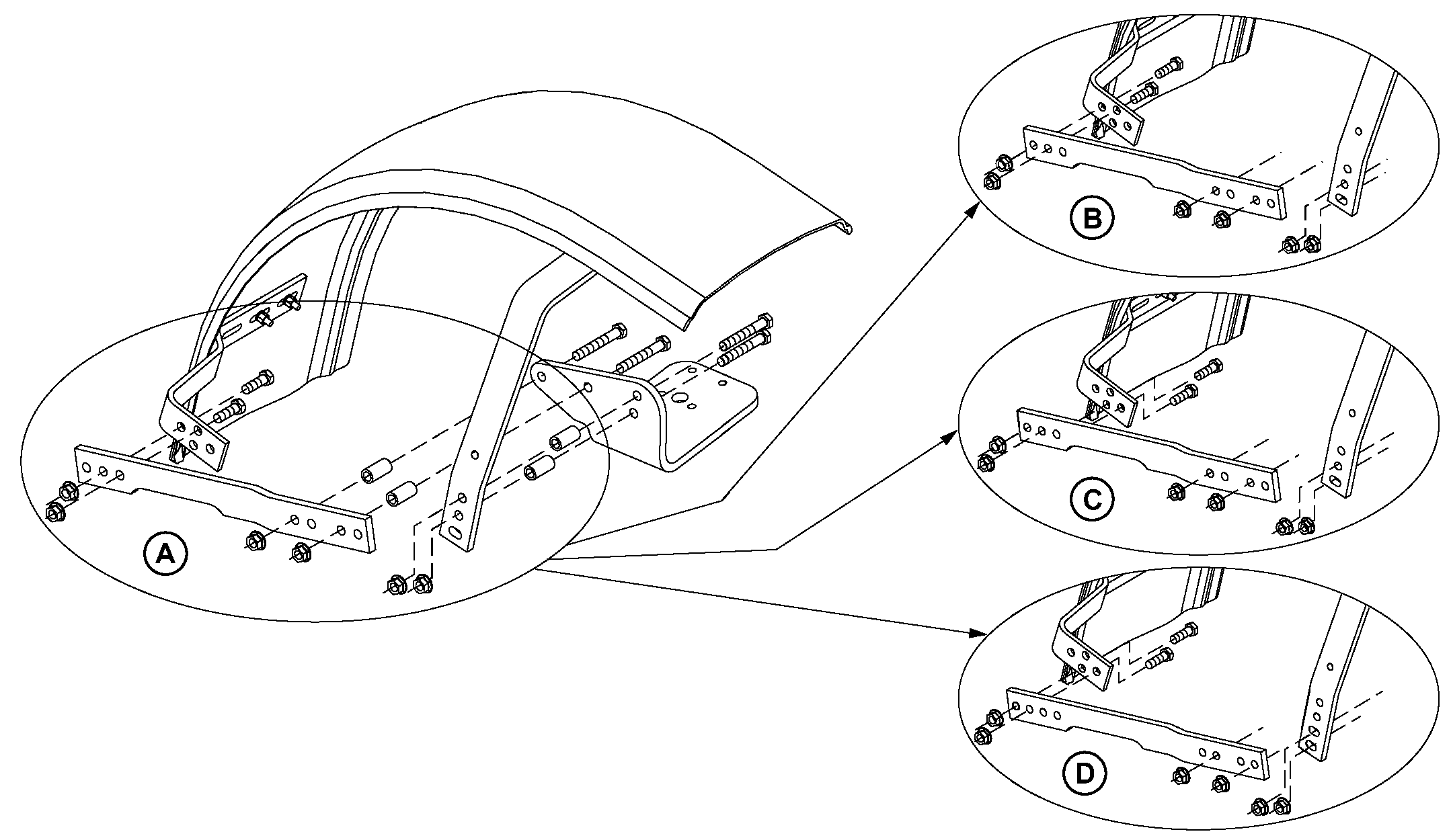

Adjust fender and support bracket referring to fender setting chart.

Tire Size Fender Setting

13.6R28 A

14.9R28 B
16.9R26 B

14.9-28 C
14.9R28 C
16.9-26 C
16.9R28 C
320/85R34 C
480/70R28 C

14.9-30 D
14.9R34 D
16.9R30 D
600/65R28 D



Tighten fender mounting bracket-to-steering arm cap screws to 90 N·m (67 lb-ft).

Tighten upper and lower support cap screws to 224 N·m (166 lb-ft).

NOTE: Fender may deflect against loader frame. See loader operator manual.
