Towing Tractor

IMPORTANT: Avoid damaging transmission-hydraulic system by observing the following precautions:

NEVER ATTEMPT TO START TRACTOR BY TOWING. Engine will not start, and transmission might be damaged.

If possible, operate engine at 1600 rpm to provide lubrication, power steering and power brakes. Have an operator steer and brake tractor.

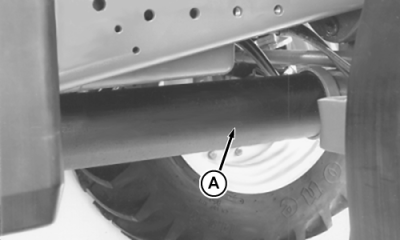

causym CAUTION: Avoid personal injury or death. Disconnect MFWD drive shaft (A) if towing tractor with front wheels on a carrier. Loss of electrical power or transmission-hydraulic system pressure will engage the MFWD and pull tractor off carrier, even with switch in the DISENGAGED position.

IMPORTANT: Do not tow a tractor faster than 16 km/h (10 mph).

When towing tractor with POWERSHIFT transmission (engine stopped), at temperatures below 0°C (32°F), DO NOT exceed 3 km/h (2 mph) for the first ten minutes.

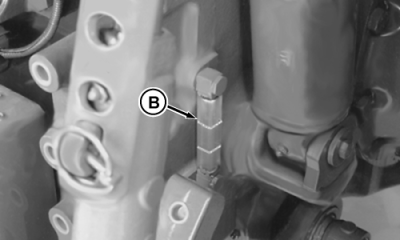

Check transmission-hydraulic oil level. Level in sight glass (B) must be between the marks. (See Lubrication Section.)

If towing with front wheels off ground, add 4 L (1 gal) for each 152 mm (6 in.) wheels are raised. DO NOT raise front wheels more than 305 mm (12 in.).

NOTE: After transporting tractor, drain oil that was added.

Tap brake pedals to make sure differential lock is not engaged.

RW55741A
RW55742A

AG,RX15494,3505 -19-19JAN00-1/2

RW55149A

Powershift Transmission
RW20347A
RW56464A

PowrQuad Transmission
RW26782

AutoQuad II Transmission

Powershift Transmission:

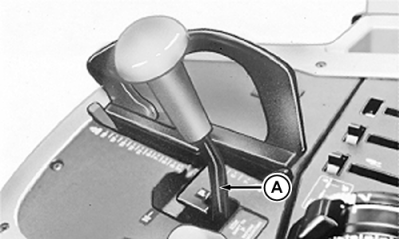

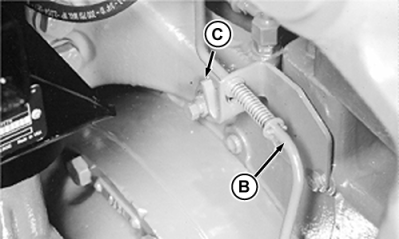

Move gear shift lever (A) to PARK position for Powershift transmission. Push tow disconnect lever (B) forward and downward to lock (C). After locking tow disconnect lever, move gear shift lever to NEUTRAL position.

IMPORTANT: Be sure the tow disconnect lever is securely latched in the tow position before moving the tractor.

After towing, move gear shift lever to PARK position. Release lever (B) from the tow position. If the lever is difficult to move, move the tractor slightly.

PowrQuad Transmission:

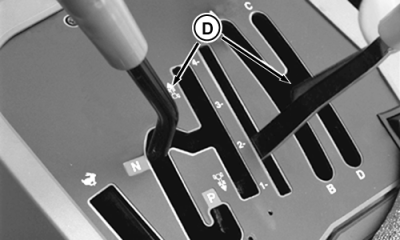

Move right-hand or left-hand reverser lever and range shift lever (D) to NEUTRAL position for towing.

AutoQuad II Transmission:

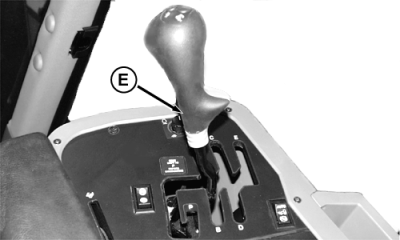

Move left-hand reverser lever and range shift lever (E) to NEUTRAL position for towing.

AG,RX15494,3505 -19-19JAN00-2/2
