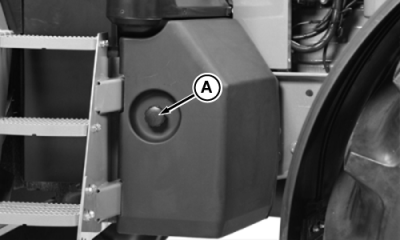

Batteries are located on right side of tractor cab below exhaust. To gain access, loosen knob (A) and slide off cover.
See Service Batteries in the Maintenance and Service Intervals Section.
