Replacing Primary and Secondary Engine Air Filters

1. Remove side shield. (See Removing Side Shields in Maintenance and Service Intervals Section.)

2. Remove screw and air cleaner cover.

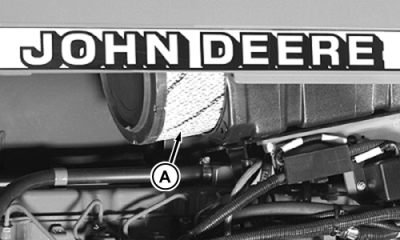

3. Remove primary filter (A).

IMPORTANT: Remove secondary filter (B) ONLY if it is to be replaced. Do not attempt to clean secondary filter. Install new filter immediately to prevent dust from entering air intake system.

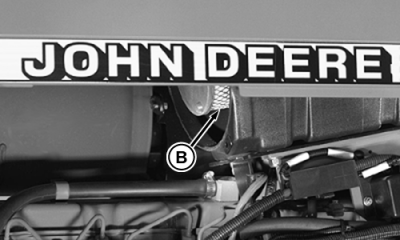

4. Pull out secondary filter (B), if replacement is required.

5. Install air cleaners and cover. Hand tighten the screw.

AG,RX15494,3522 -19-19JAN00-1/1
