Cleaning or Replacing Cab Air Filters

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

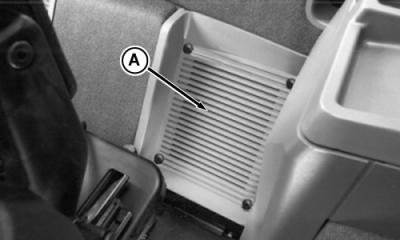

Remove filter covers (A) behind the seat and remove filters. Replace or clean with compressed air. In dusty conditions, this service may be required more often.

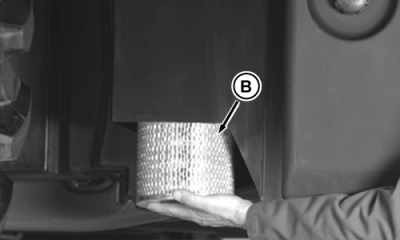

Remove and clean fresh air filter (B) with compressed air. Inspect filter for damage after cleaning. Damaged filters should be replaced immediately. Make sure gasket is in good condition.

AG,RX15494,3523 -19-19JAN00-1/1
