Servicing Engine Air Pre-Cleaner

Prop up or remove hood.

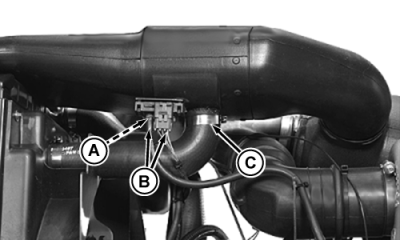

Remove pre-cleaner bracket nuts (A). Disconnect hose and wiring (B). Remove ejector hose (C) from pre-cleaner. Remove pre-cleaner from tractor by rotating and sliding out of intake canister inlet.

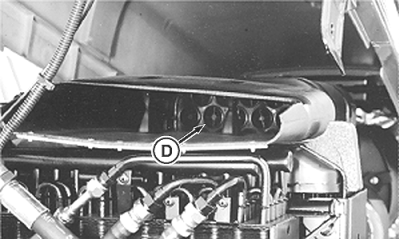

Inspect pre-cleaner for dirt and trash. Clean aspirator tubes (D) with compressed air or wash tubes in warm water using a mild detergent. Rinse aspirator tubes in clean water. Dry before installing.

Reassemble pre-cleaner in reverse order of disassembly.

Tighten all air intake system joints. Tighten hose clamps at turbocharger.

AG,RX15494,3524 -19-19JAN00-1/1
