Cleaning Grille Screens, Radiator, and Oil-Cooler Condenser

1. Stop engine and clean front grille screens or side panels using a brush.

2. Remove engine side shields, and remove any trash built up on radiator and cooler-condenser.

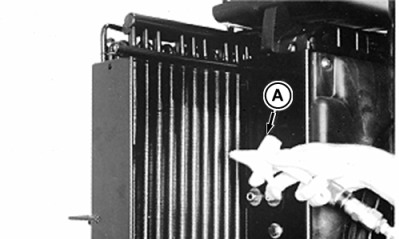

3. Remove front grille screen brace on each side of cooler-condenser. Slide cooler-condenser partially out one side, clean and repeat process for the other side. Use compressed air (A) or water. Straighten any bent fins.

AG,RX15494,3526 -19-19JAN00-1/1
