OMAR172276: 7610, 7710, and 7810 Tractors( 30 001- ), Block File: AG_RX15494_3532_19

NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.

1. Rotate tension arm by installing 1/2 in. breaker bar (A) in arm.

2. Remove belt from fan drive pulley.

3. Relax tension and remove belt from crankshaft pulley and fan.

4. Replace belt.

A-Breaker Bar
B-Without Trailer Air Brakes
C-With Trailer Air Brakes

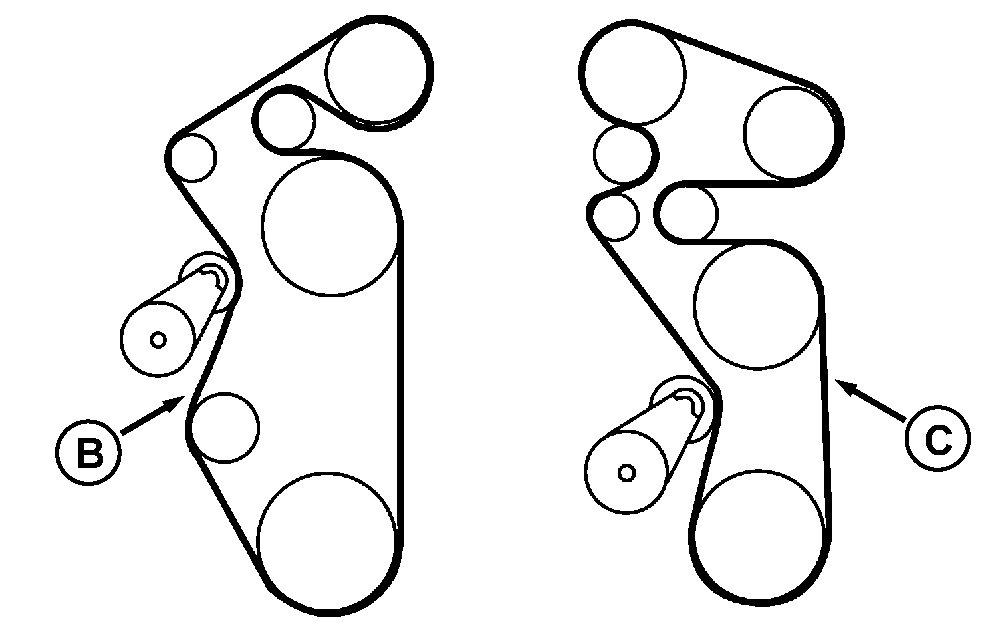

Fan Belt Routing-7610

RW26773

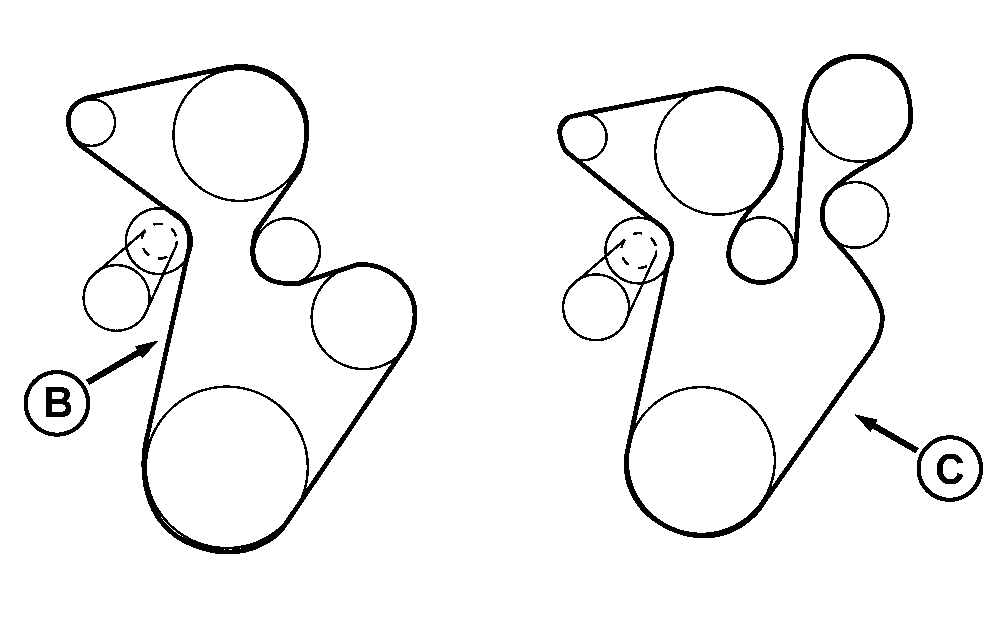

Fan Belt Routing-7710 and 7810

AG,RX15494,3532 -19-19JAN00-1/1
