Bleeding hydraulic trailer brake

Install a hose onto trailer brake outlet (A). Place other end of hose into the hydraulic filler tube

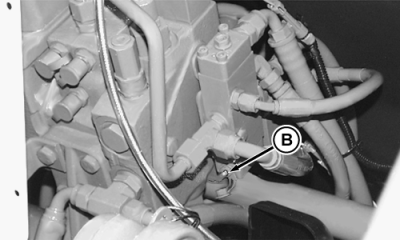

Loosen bleed screw (B), drain hose over bleed screw nipple. Place other end of hose in hydraulic filler tube.

Start engine at slow idle and depress brake pedals for 2 minutes.

Close bleed screw (B) with brake pedals depressed.

Remove hoses and install hydraulic filler tube cap.

AG,RX15494,3535 -19-19JAN00-1/1
