OMAR172276: 7610, 7710, and 7810 Tractors( 30 001- ), Block File: AG_RX15494_3543_19

1. Put the tractor on level ground and run the engine to warm oil.

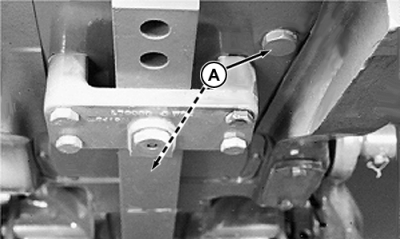

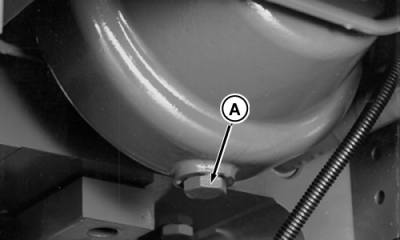

2. Stop the engine and remove drain plugs (A) on bottom of differential case and MFWD clutch housing.

3. Reinstall plugs after oil has drained. (See Cleaning Hydraulic Oil Suction Screen in this section.)

4. Refill with Transmission-Hydraulic oil specified in Fuels, Lubricants, and Coolant Section.

NOTE: When changing oil from one viscosity to another, the powershift control unit must be recalibrated. See your John Deere Dealer.

Specification

Transmission-Hydraulic Capacity 1 -Powershift Transmission	102.3 L (27 gal)
PowrQuad and AutoQuad II Transmission	98.3 L (25.9 gal)
PowrQuad Transmission with Creeper	102.3 L (27 gal)

5. Start and run engine several minutes. Check for leaks. Stop engine and recheck oil level after a minimum of five minutes. Add oil as necessary.

¹ Capacities are average values and may vary between tractors or each oil change.

AG,RX15494,3543 -19-19JAN00-1/1
