Replacing Hydraulic Filter

Replace hydraulic filter as required or every 750 hours of service.

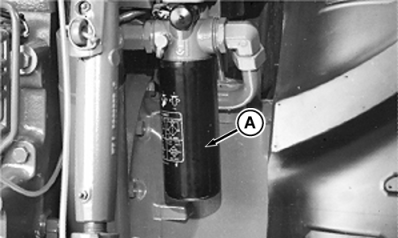

1. Remove filter (A)

2. Lubricate the new filter packing with hydraulic oil only

3. Install and hand tighten filter

4. Check oil level and add as required

AG,RX15494,3544 -19-19JAN00-1/1
